- Two petal small hole measuring instrument

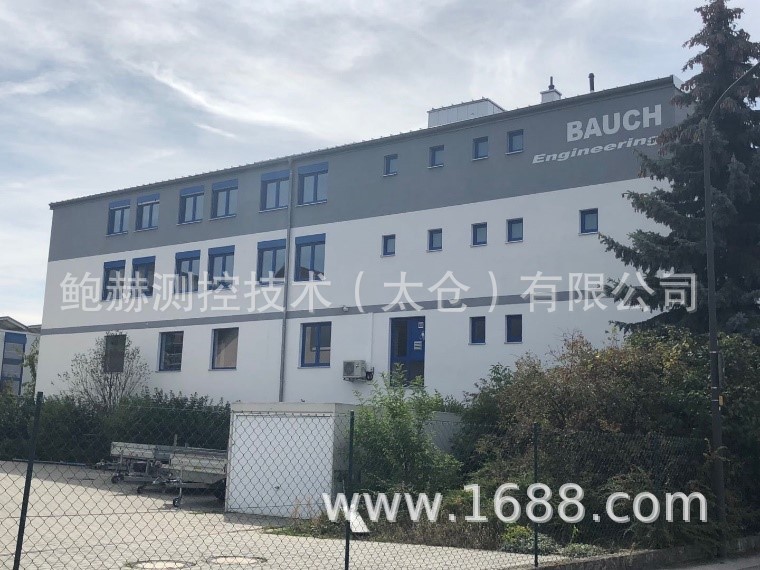

Bohr Measurement and Control Technology (Taicang) Co., Ltd. (referred to as BMT) was established in 2018 and is a subsidiary of Bohr Engineering in Germany. The measurement and control research and product exhibition hall located in Suzhou Industrial Park is also in use. Its headquarters is located in Ingolstadt, the birthplace of Audi, and was established in 1993.
After the establishment of BMT, the German Bauch Measurement and Control Division was merged into BMT, and all non-standard automation/measurement product businesses were operated by BMT company. BMT mainly provides customers with the design and production of non-standard automation measurement control and the integration of overall industrial automation. The high-precision detection system designed, developed and manufactured by the company is suitable for product testing in different fields such as automotive industry, aerospace, medical equipment, metrology industry, food machinery, tobacco machinery, clock industry, etc. In addition to BMT's own measurement and control products, BMT is also an agent and service provider for multiple European and American precision measurement companies, relying on the resource team of Germany's Bauch, aiming to provide customers with professional measurement solutions.

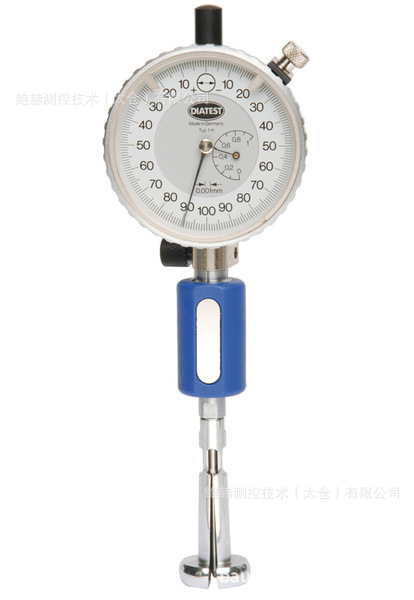

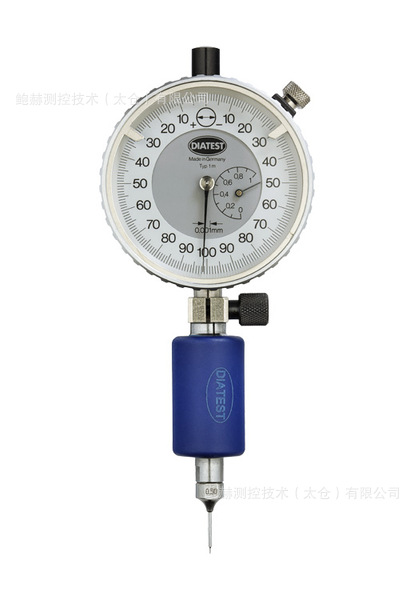

The two petal measuring system is an internal diameter measuring instrument that combines flexibility and versatility
A multifunctional aperture measuring instrument can measure the aperture range from Ø 0.47 to 41.3mm. While measuring the aperture, it can also detect the roundness and ellipticity of the hole, especially suitable for small aperture measurements and high-precision aperture measurements in the laboratory. It can be used for manual aperture measurement or automatic aperture measurement
Application scope and characteristics:
- Standard probes, hard chrome plated: Ø 0.47 – 41.1mm
- Standard probes, carbide inserted:Ø 1.5 – 41.1 mm
- Standard probes, ceramic inserted: Ø 3.7 – 41.1 mm
- Blind bore probes, hard chrome plated: Ø 1.5 – 41.1 mm
- T-3P: 3 – Point probes: Ø 4.75 – 150.6 mm
- T-T: probes to measure deeper bores: Ø 2.05 – 9.8 mm
- T-PA: probes for parallel measurement: Ø 4.7 – 41.1 mm
- Special shapes on request, respectively measurement of O.D., recesses, etc
- Zero setting in setting master e. g. according to DIATEST company standard or DIN 2250-C
- The built-in elastomer provides continuous force measurement, thus eliminating human factors
- High universality, within the measurement range of a single probe, it can be easily and quickly adjusted to the required size
- Modular structure, configured with various accessories to meet any measurement needs
- Measurement range: Ф 0.47- Ф 41.1mm (two-point) Ф 4.75- Ф 150.6mm (three-point)
- Measurement depth: up to 2000mm or more
- Repetitive accuracy: ≤ 1 μ When used in conjunction with the bench, the repeatability accuracy can reach 0.5 μ M
- Performance error: ≤ 1%
In addition to aperture measurement, the two petal measurement system can also measure geometric shapes/defects such as ellipticity, concentricity, barrel shape, etc.

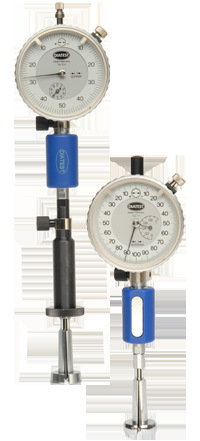

A variety of accessories meet the needs and range of fixed measurements. You can purchase a two-piece measuring system set in a wooden box, for example, with a measurement range of 3.7 to 9.8 millimeters. The mechanical index resolution of 0.01 0.001 millimeters can be used for display, or the digital minimum maximum value, and the display table can transmit measurement values through DIAWIRELESS.
Provide special shapes and solutions according to customer requirements
